How to use the motorcycle tire pressure monitoring system

This system is designed to provide you with a more layer of protection while driving.

After installing TPMS, the system can monitor the tire pressure and temperature in real time. If abnormal tire pressure and temperature are detected, the system will send real-time warning sounds and bright screen flashing icons to inform the driver. Not only real-time reminders the problems which can be dealt with in time to avoid traffic accidents but also can ensure the safety of drivers and passengers.

operating instructions

two buttons: power “+”, “SET”

Power “+”: Long press “+” button to turn on.
Long press “+” to shut down.

1. press and hold the “SET” button for 3 seconds to enter the menu setting.

After entering the menu setting, short press the “+” button to set the menu selection respectively:
A. tire pressure unit Bar/psi
B. tire temperature unit
C. setting high pressure value of tire pressure 2.1-6.0 bar
D. set low pressure value of tire pressure 0.5 – 2.0 bar
E. high temperature alarm setting 50 – 93°C

2. Pairing mode

Short press the “+” button 8 times to enter the tire pairing mode.

Front wheel flashing indicates front wheel pairing, after pairing, press “+” to replace the rear wheel. Rear wheel flashig means rear wheel piaring, long press “SET” after pairing and exit.

default value

3. main parameters

Monitor technical parameters:

Sensor parameters:

4. installation

Sensor installation

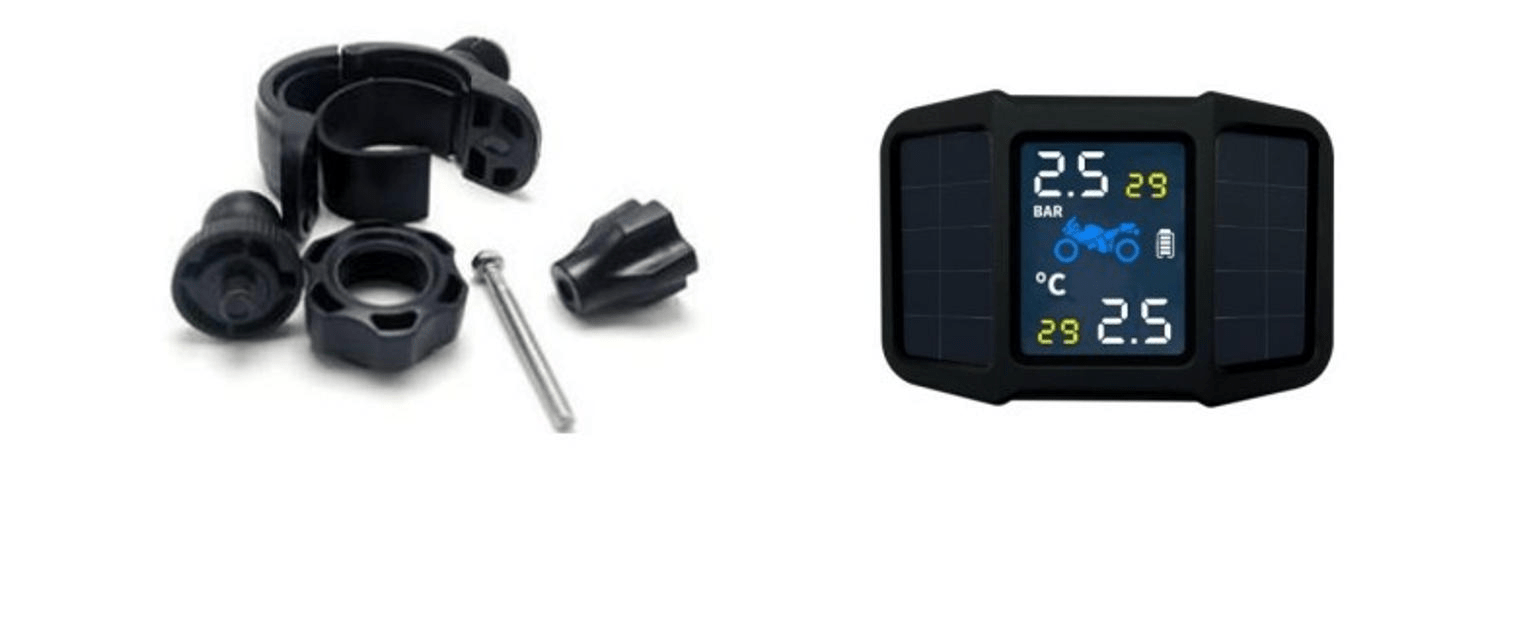

bracket insallation instructions

1. unscrew the 2 screws and put on the motorcycle/electric bike/bicycle to tighten.

2. point the bracket mounting head to the position you need, and make sure the bracket is firm.

3. install the tire pressure receiver on the bracket, tighten and lock.

4. rotate the tuning knob by the ball head to move and adjust the appropriate angle.
