Dual Functions: online TPMS & GPS Tracking
Buy one online TPMS, you get extra GPS tracking
Know Your tyres’ Health & vehicle’s Location. Anytime, Anywhere
Different tyres layout for car, truck
SMS Alert for Tyres’ Status
SMS tracking
Color Screen Display
advaned GPS Tracking
know your tyres status before you drive
TPMS SMS alert for tyres
know your tyres status during driving
TPMS for Private Car
TPMS for truck
Realtime TPMS Online
Users can visit tires status on tracking software platform online realtime.

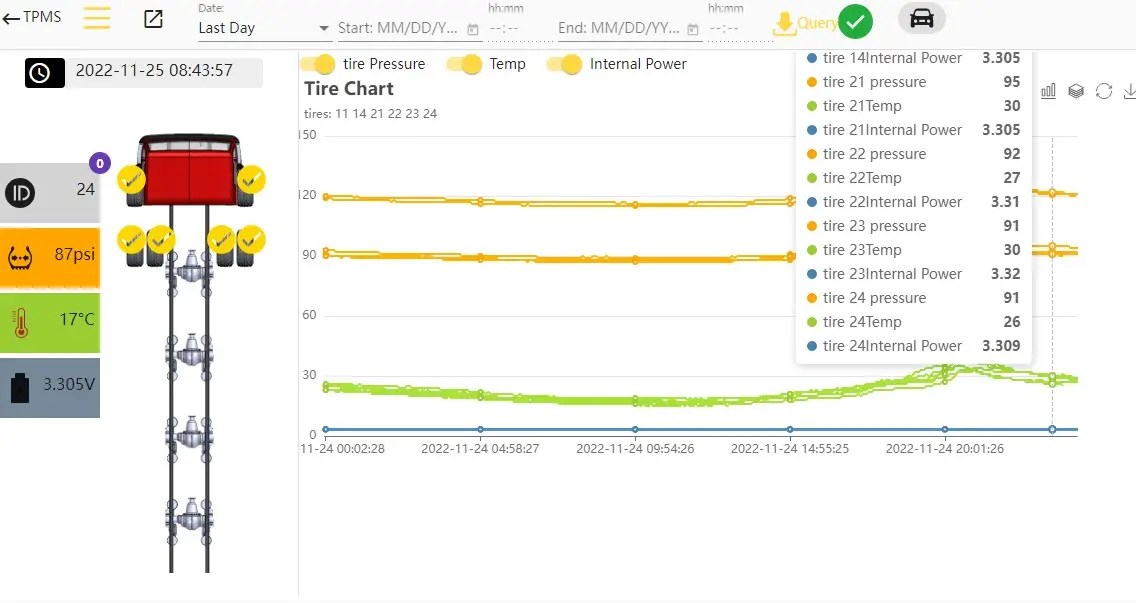

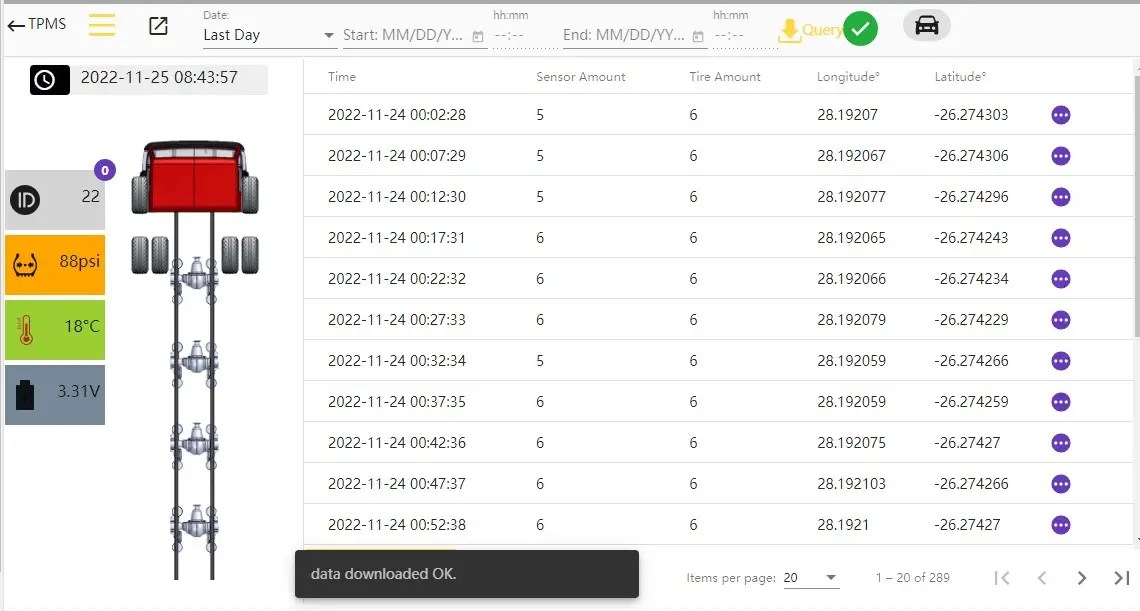

Visualized History TPMS data
History tires status data and different reports and statistics on tracking software platform.
support 4 tires to 42 tires
Support different vehicles: cars, trucks, trailers.
Dual TPMS antennas
Dual antennas for better TPMS signal reception.
Configure TPMS remotely
Configure TPMS remotely via SMS or 4G. Or you can configure on configuration sofftware
Easy Installation
You only need to connect antennas and power cables to vehicle, and install tire sensors onto tire valve stems.
wireless SOS button
Wireless SOS button for security and safety. Users can send SOS alert 30meters away from vehicle.
Strong GPS tracking functions
This is a complete and adanced GPS tracker besides its TPMS function.

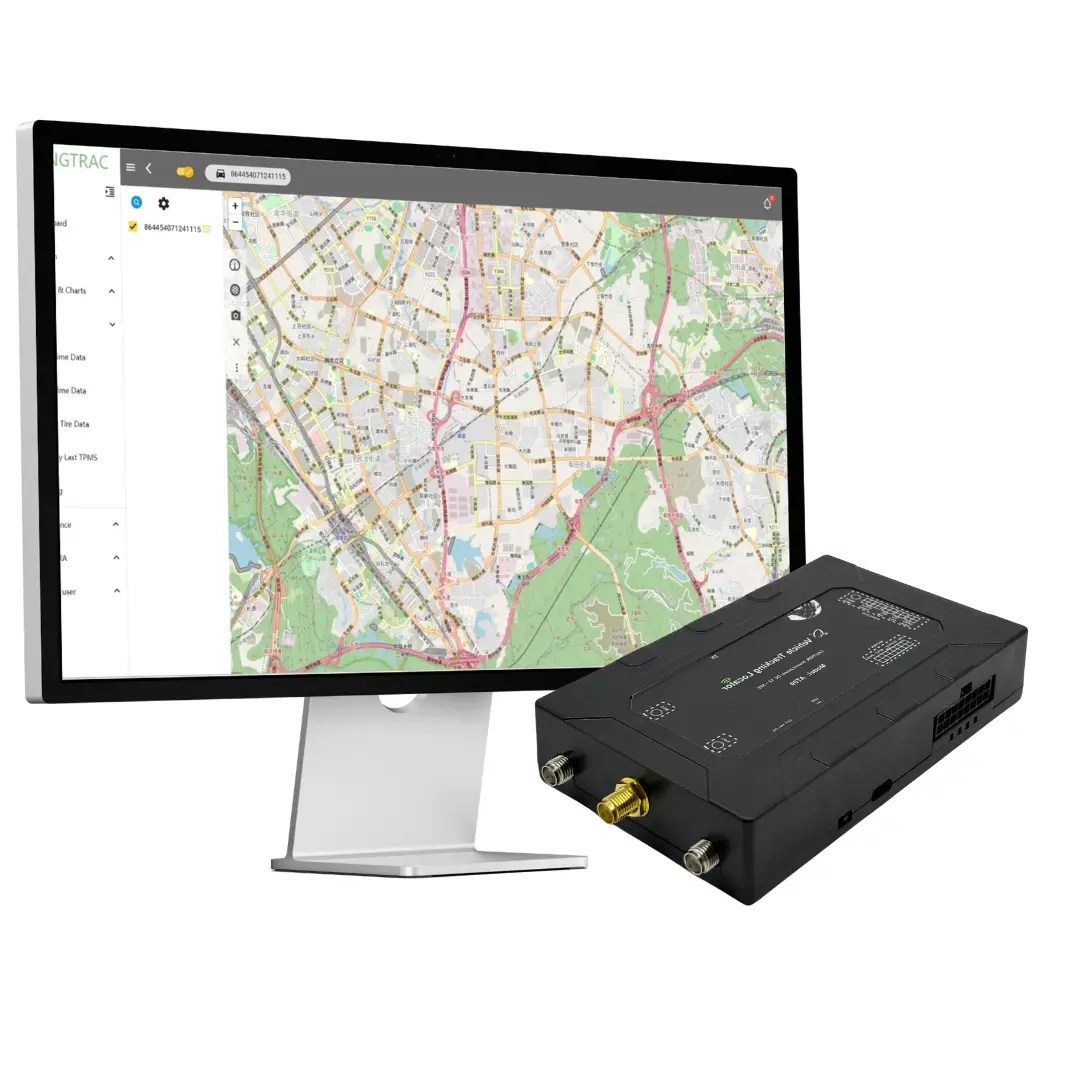

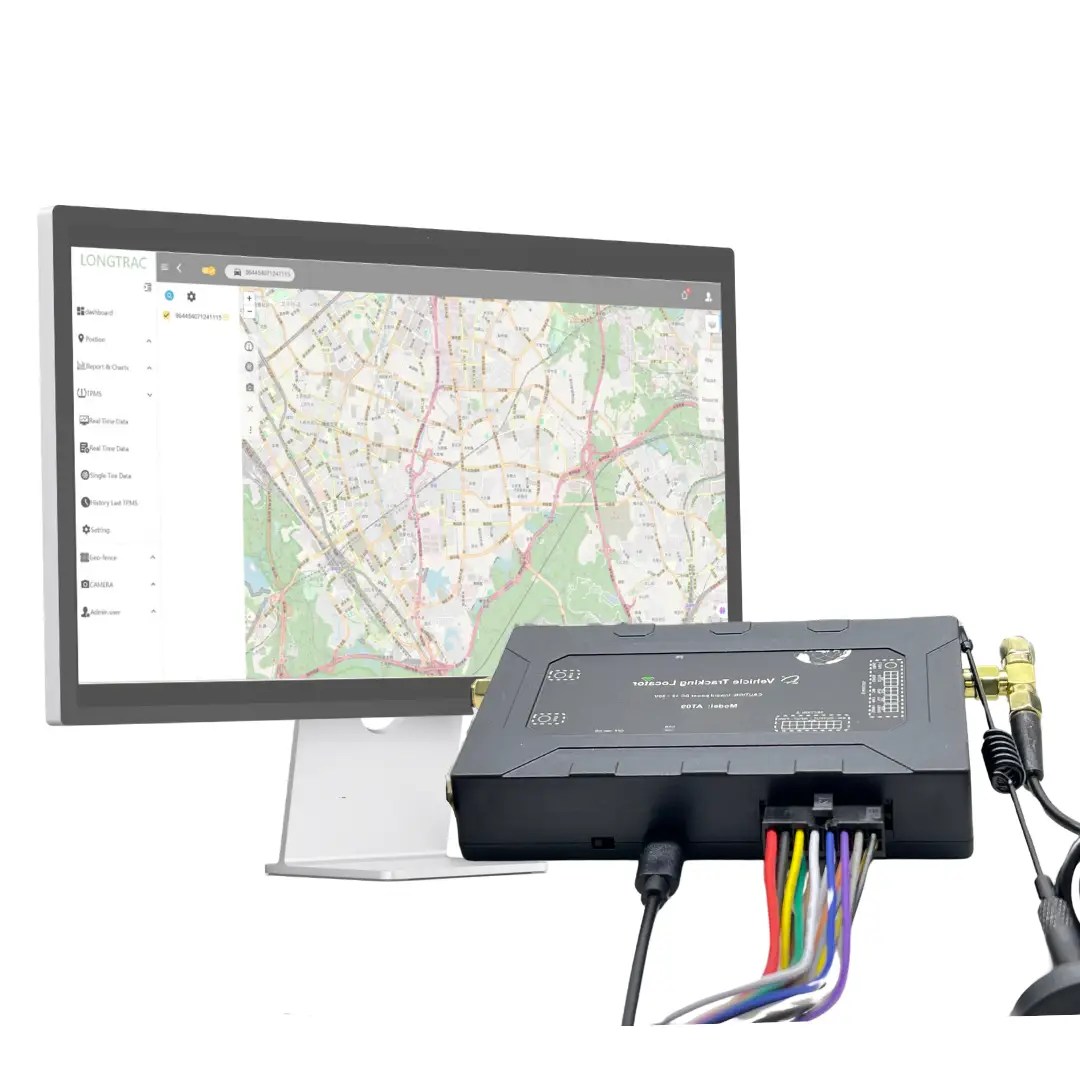

Free online Tracking Software Platform
Free tracking software platform service(except the video monitoring part).
Third party tracking software platform support
Wialon, Uffizio, GPSGate, gps-server, redgps, etc.
data protection
We do not sell/share your Data.
One off payment
no further or hidden fees except simcard service which you should handle yourself.
What you get from package
● TPMS Receiver +
GPS Tracker
● GPS Antenna
● 4G Antenna
● TPMS Antenna
● IO Cables
● Wireless SOS Button
● Tire Sensors
● IO Cables
● User Account for Tracking Software Platform
online TPMS description
Frequency range: 213MHz to 960MHz
Modulation mode: (G)FSK/(G)MSK/OOK
Data rate: 0.5 to 250kbps
Sensitivity: -120 dBm at 2.4 kbps, F(RF) = 433.92MHz
-109 dBm at 50 kbps, F(RF) = 840MHz
-120 dBm at 2.4 kbps, F(RF) = 920MHz
Voltage: 1.8 to 3.6V
Sleeping current: 300 nA when counter shut down. 800 nA when counter works
Receiving current: 6.9 [email protected], FSK
tire sensor specs
pressure range: 1-13Bar(100kPa-1300kPa), 1-9Bar(100kPa-900kPa)
Temperature: Setting Range: -20°C–93°C; Operation/Storage: -20°C–93°C
Power Supply: DC 3.3V
Frequency: 433.92MHz
Battery: Lithium-Manganese Button Cell Battery
Working temperature: -40°C–125°C
Standby Battery life: ≥4 years
Application Scope: TS06: truck, bus, etc; TS06-LB: OTR tires and mining vehicles of large bores
Size: 27 ×28 mm (TS06) | 27 ×31mm (TS06-LB)(ø x h)
Weight: TS06: 28g; TS06-LB: 42g
TPMS chip: SP40
Accuracy: Pressure: ±1.5psi; Temperature: ±3°C
Transmission Power: ≤10dBm
it's More than a TPMS

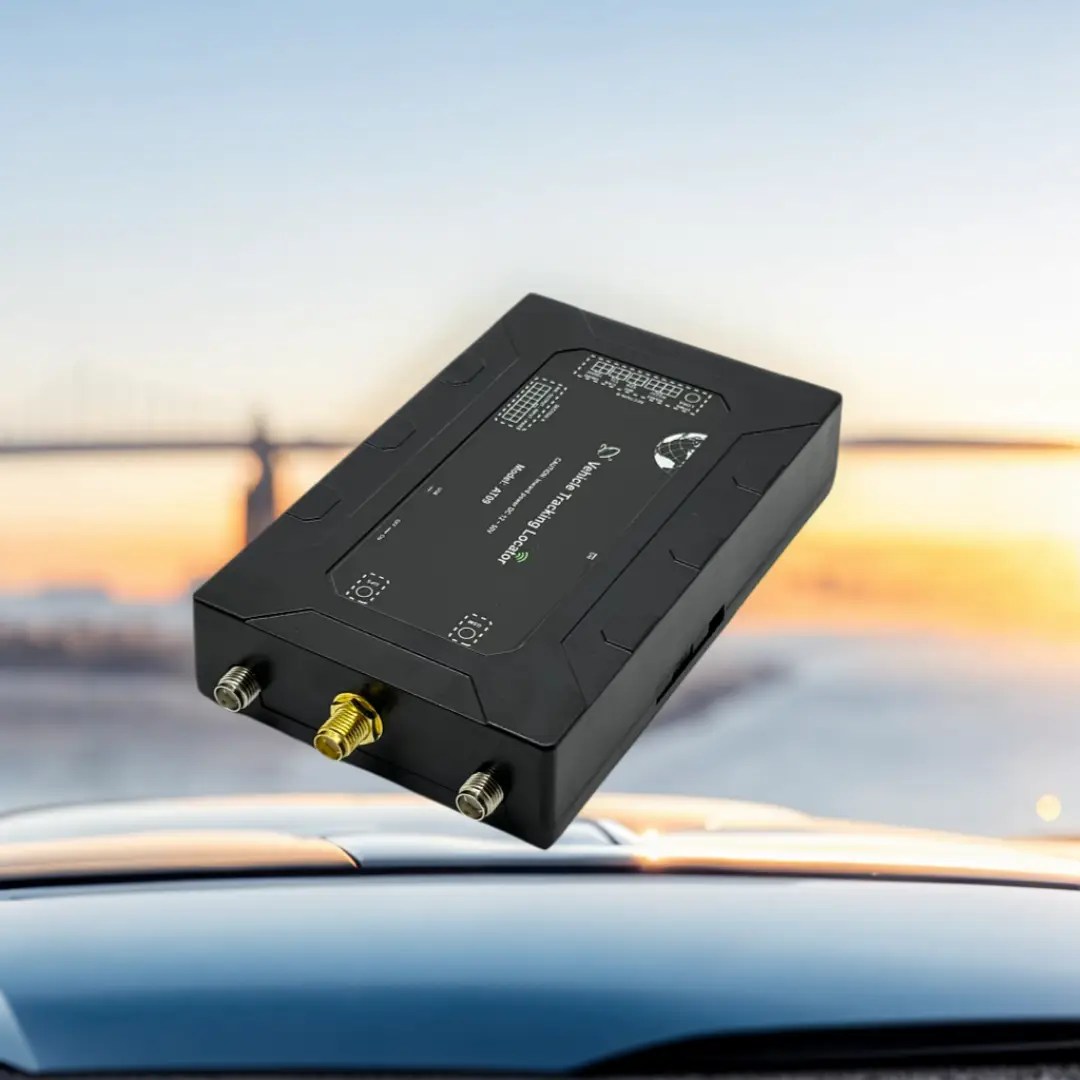

GPS tracker:
features
• multiple ports: 1 RS485, 2 RS232, 1 microphone and 1 speaker, 1 CAN, 1 TTL, 2 1-wire
• support Omnicomm fuel sensor
• Two way voice communication
GPS tracking Description
• GPS and GLONASS supported simultaneously
• BeiDou and Galileo supported optionally
• Robust firmware design and stable hardware with watchdog

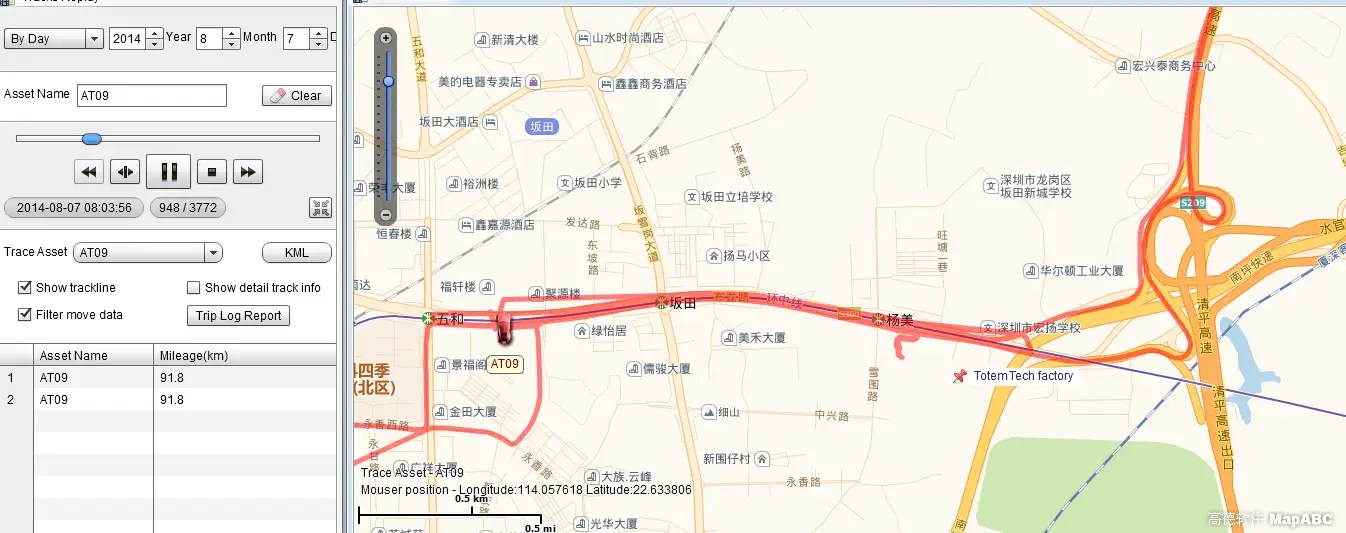

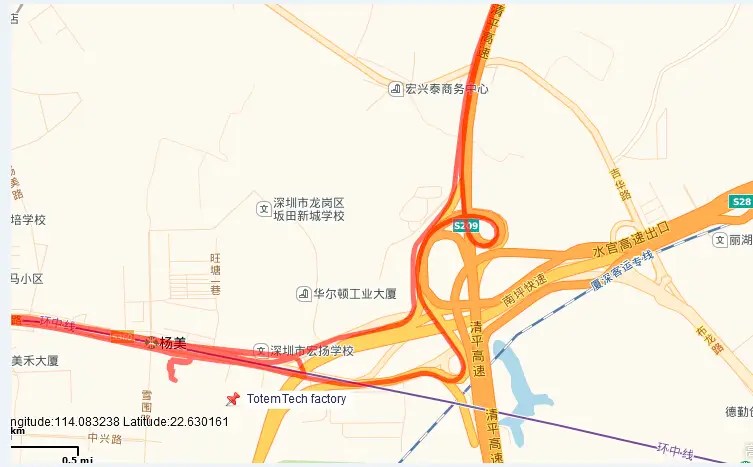

• Real time tracking and history data traces tracking
• 3-Axis Digital Accelerometer movement status monitoring
• Firmware update by OTA
• Support DC 9v –50v , over-voltage protection
• Send commands to GPS trackers via GPRS
• Send GPRS data to IP or domain name
• 16Mb Flash Memory( stores 4000pcs or so data)
• Fuel/oil level detection with high accuracy
• 2g, 3g, 4g
• GPS module with high GPS positioning accuracy
• SMS, GPRS TCP / UDP communications
• Real time tracking and history data traces tracking
• Track by cell phone or web based tracking software
• Real-time tracking (Time, Distance Interval or Intelligent Mode)
• Multiple alarm types
• Control car doors close/open, Detect the status of engine on/off
• Intelligent power management: normal, sleep, deep sleep
• flash memory for data storage in GSM blind area
• Sleep mode for Saving Power and GPRS traffic
• Backup battery: 800 mAh Li Polymer battery
• Geo-fencing reports: into-Geo-fence; Out Geo-fence
• Motion sensor for vehicle motion detections
• Different GPRS data string sending intervals:
at certain interval in engine on or tremble state;
at the other interval in engine off or parking state
• Flexible GPRS data sending modes by different triggers
Alarm Eevents
Over Speeding
Low Battery
GEO Fencing
trembles
Car Door State
External Power Off
SOS Alarm
GPS Antenna state
Engine State
Course Change
vehicle towing alert
engine idle alert
SPECS
GPS Tracking software platform
