online TPMS & GPS Tracking
Dual Functions: online TPMS & GPS Tracking
Buy one online TPMS, you get extra GPS tracking
if you are corporate customers or require in bulk or need customizations, please visit our company official website:
Know Your tires’ Health & vehicle’s Location. Anytime, Anywhere
Meet the genius little device that watches over your tires AND tracks your car—all from your phone. Prevent blowouts, stop theft, and save money on fuel.
Different tires layout for car, truck
supports 4 wheels, 6 wheels, 12 wheels, 22 wheels, etc.
SMS Alert for Tires’ Status
If any tire has pressure or temperature issue, an SMS alert would be generated to your phone.
SMS tracking
SMS Tracking available if you don’t want to use online tracking software platform.
Color Screen Display
realtime show tires status on dashboard with different color icons and beeping sound.
advanced GPS Tracking
realtime gps tracking, history gps data, geo-fencing for routes.
know your tires status before you drive
know your tires status during your drive
online TPMS on software platform remotely
Realtime TPMS Online
Users can visit tires status on tracking software platform online realtime.

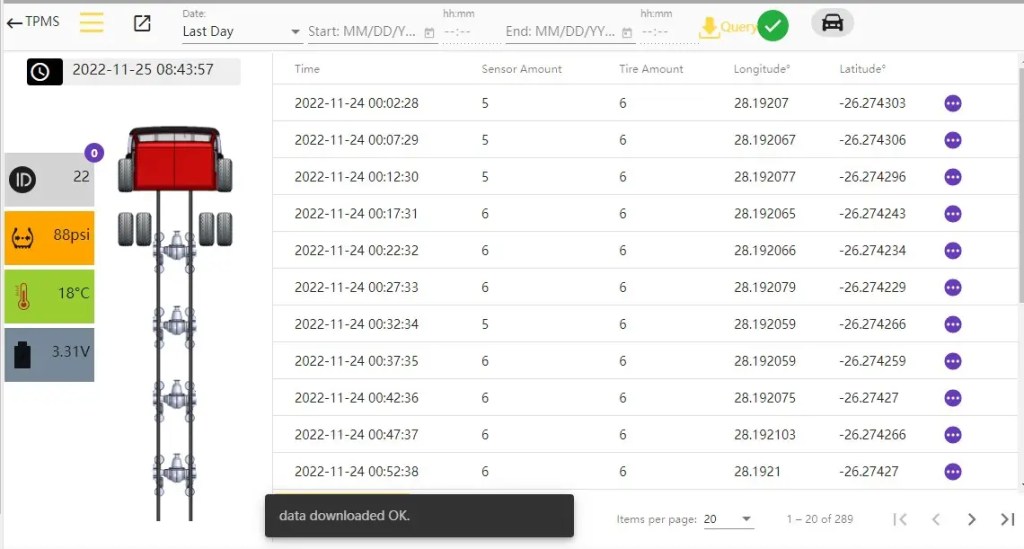

Visualized History TPMS data
History tires status data and different reports and statistics on tracking software platform.
support 4 tires to 42 tires
Support different vehicles: cars, trucks, trailers.
Dual TPMS antennas
Dual antennas for better TPMS signal reception.
Configure TPMS remotely
Configure TPMS remotely via SMS or 4G. Or you can configure on configuration sofftware
Easy Installation
You only need to connect antennas and power cables to vehicle, and install tire sensors onto tire valve stems.
wireless SOS button
Wireless SOS button for security and safety. Users can send SOS alert 30meters away from vehicle.
Strong GPS tracking functions
This is a complete and adanced GPS tracker besides its TPMS function.
Free online Tracking Software Platform
Free tracking software platform service(except the video monitoring part).
Third party tracking software platform support
Wialon, Uffizio, GPSGate, gps-server, redgps, etc.
data protection
We do not sell/share your Data.
One off payment
no further or hidden fees except simcard service which you should handle yourself.
TPMS specs
Frequency range: 213MHz to 960MHz
Modulation mode: (G)FSK/(G)MSK/OOK
Data rate: 0.5 to 250kbps
Sensitivity: -120 dBm at 2.4 kbps, F(RF) = 433.92MHz
-109 dBm at 50 kbps, F(RF) = 840MHz
-120 dBm at 2.4 kbps, F(RF) = 920MHz
Voltage: 1.8 to 3.6V
Sleeping current: 300 nA when counter shut down. 800 nA when counter works
Receiving current: 6.9 mA@433.92MHz, FSK
it’s More than TPMS
GPS tracker:
• multiple IO ports: 4 digital inputs , 4 digital outputs, 4 analog inputs
• multiple ports: 1 RS485, 2 RS232, 1 microphone and 1 speaker, 1 CAN, 1 TTL, 2 1-wire
• 2 temperature sensors monitoring simultaneously
• Send data to two servers simultaneously
• 4 fuel sensors monitoring simultaneously
• Google map link sent via SMS
• support Omnicomm fuel sensor
• Two way voice communication
accessories
GPS antenna
4G antenna
wire harness
TPMS antenna
microphone + speaker(optional)
online TPMS tracking software platform
size
112×80×25mm | 4.4×3.15×0.98inch
